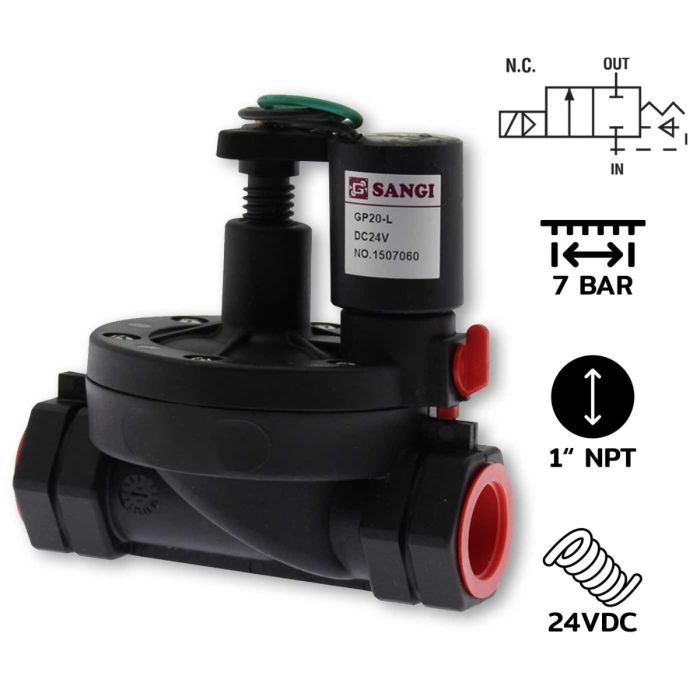

GP25(1")-L-DC24V is latching coil, Diaphragm 2/2 way NC, PVC Seal

Details of GP25(1")-L-DC24V is latching coil, Diaphragm 2/2 way NC,PVC Seal

The Solenoid Valve Diaphragm Type (Diaphragm Solenoid Valve) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as water supply systems, irrigation systems, compressed air systems, and various industries.

Working Principle of Diaphragm Solenoid Valve

Main Components

• Solenoid Coil (Electromagnetic Wire Coil): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Moves up and down with the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens or closes fluid channels.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operating Mode

Normal Closed (NC) – Normally Closed

• No electricity → Plunger closes pilot port → Pressure on both sides of the diaphragm is equal → Diaphragm closes valve.
• Electricity applied → Plunger is pulled up → Opens pilot port → Pressure above the diaphragm decreases → Fluid from below pushes the diaphragm up → Valve opens.

Normal Open (NO) – Normally Open

• The principle is similar but reversed in terms of pressure → When no electricity, valve is open; when electricity applied, valve closes.

Advantages of Diaphragm Valve

• Rapid opening and closing.
• No leakage (as the diaphragm does not wear out like other valves).
• Easy maintenance.
• Suitable for clean liquids such as water, air.

Usage Details

• Purified Water System – Controls water in filters and cold water makers.
• Irrigation Systems – Opens and closes water according to schedule.
• Food/Pharmaceutical Industry – Used with clean liquids that need precise control.
• Pneumatic Systems (Compressed Air) – Controls air supply in machinery.
• Home Appliances – Such as washing machines, coffee makers.

Tech Specifications GP25(1")-L-DC24V is latching coil, Diaphragm 2/2 way NC,PVC Seal
