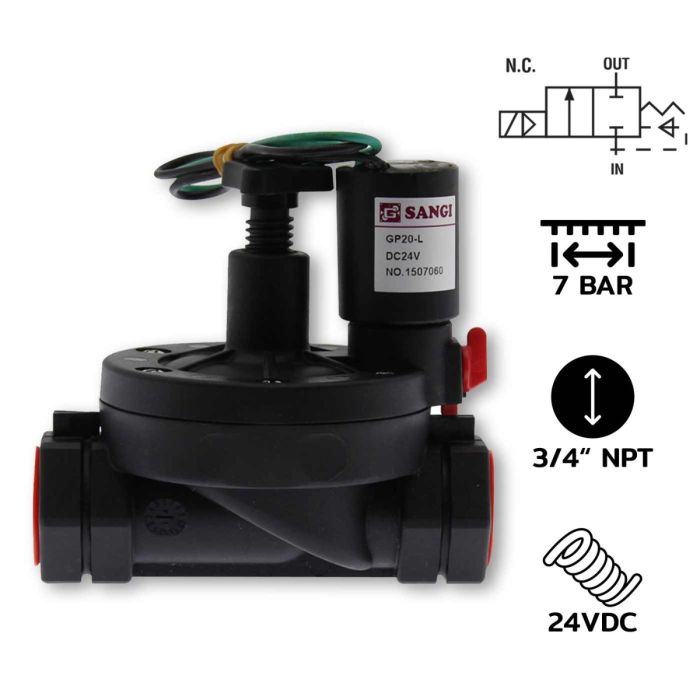

GP20(3/4")-L-DC24V is latching coil, Diaphragm 2/2 way NC, PVC Seal, For Water

Details of GP20(3/4")-L-DC24V is latching coil, Diaphragm 2/2 way NC,PVC Seal,For Water

The Solenoid Valve Diaphragm Type (Diaphragm Solenoid Valve) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as water supply systems, irrigation systems, compressed air systems, and various industries.

Working Principle of Diaphragm Solenoid Valve

Main Components

• Solenoid Coil (Electromagnetic Wire Winding): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Lifted or lowered by the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens and closes fluid pathways.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operation Mode

Normal Closed (NC) – Normally Closed

• No electricity → Plunger closes pilot port → Water pressure on both sides of the diaphragm is equal → Diaphragm keeps valve closed.
• Electricity supplied → Plunger is lifted by magnetic field → Opens pilot port → Pressure above the diaphragm decreases → Fluid from below pushes diaphragm up → Valve opens.

Normal Open (NO) – Normally Open

• The principle is similar but reversed in terms of pressure → When no electricity, valve is open; when electricity supplied, valve closes.

Advantages of Diaphragm Valve

• Rapid opening and closing.
• No leakage (because the diaphragm does not wear out like other valves).
• Easy maintenance.
• Suitable for clean fluids such as water, air.

Usage Details

• Potable water system – Controls water in filters and cold water machines.
• Irrigation systems – Opens and closes water according to schedule.
• Food/Pharmaceutical industry – Used with clean fluids that need precise control.
• Pneumatic systems (compressed air) – Controls the supply of air in machinery.
• Home appliances such as washing machines, coffee makers.

Tech Specifications GP20(3/4")-L-DC24V is latching coil, Diaphragm 2/2 way NC,PVC Seal,For Water
