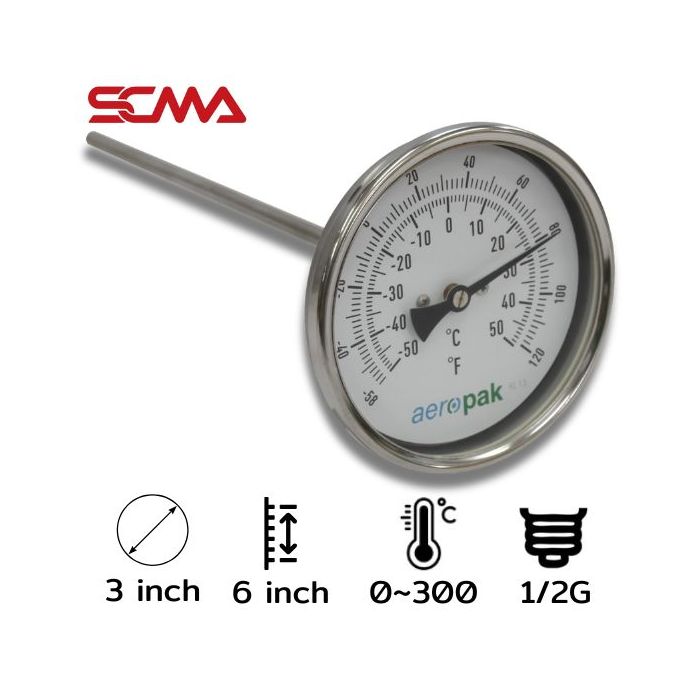

ASSF-301 3"x6" Temperature Sensor/Straight 0~300 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-301 3"x6" Bimetal Thermometer/Back Connection Thread 0~300 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Back Connection / Adjustable Thread / Dial Size 3 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size (dial face) : 3 inches (≈ 75 mm)
• Mounting Type (Installation) : Back Connection (rear thread) type Adjustable Thread = Convenient for dial direction adjustment

Preliminary Specifications (initial spec information)

• Dial Size 3 inches (75 mm)
• Display °C or °F

Process Connection (thread)

• Back Connection installation (Install at back)
• Adjustable Thread (rotating thread)
• Standard BSPT / NPT
• Pipe size 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Stem Length: 100, 150, 200 mm (customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range (Temperature measurement range) Standard range: -20…60°C 0…120°C 0…200°C 0…300°C 0…400°C Select according to application

Material (Material)

• Case (Case): Stainless Steel 304 or 316
• Window (glass face): Glass / Safety Glass / Polycarbonate
• Protection (Protection) IP65 (Dustproof and Splash Water Resistant)
• Accuracy (accuracy) ±1.5% of Full Scale

Application (Usage) ASSF-301 3"x6" Bimetal Thermometer/Back Connection Thread 0~300 C/F Dia.6.35mm 1/2G SUS304

Used for installation in tanks, pipes, heating systems, boilers, HVAC, food industry and various manufacturing processes. Key feature: Adjustable thread suitable for applications requiring dial direction adjustment to easily read values at the installation position.
