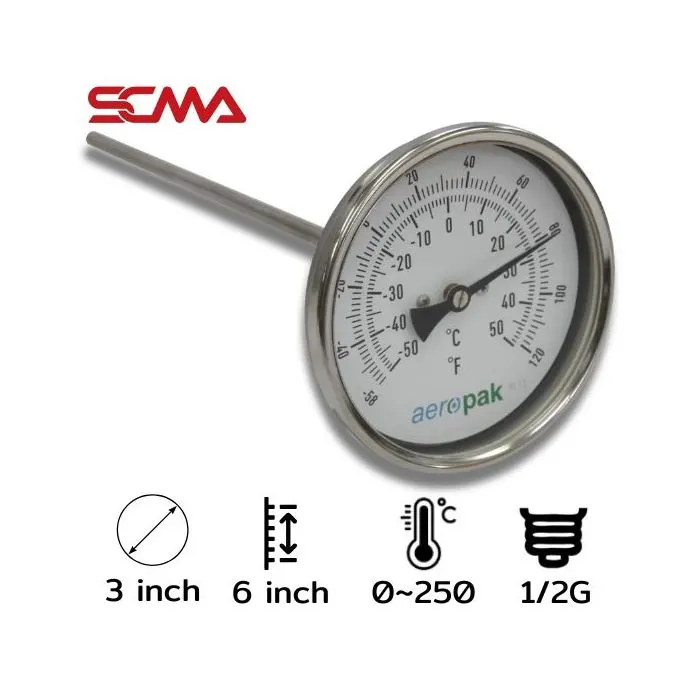

ASSF-301 3"x6" Temperature Sensor/Straight 0~250 C/F Dia.6.35mm 1/2G SUS304

Details
ASSF-301 3"x6" [Bimetal Thermometer] / Back Connection 0~250 C/F Dia.6.35mm 1/2G SUS304

[Bimetal Thermometer], Back Connection type, Adjustable Thread, Dial Size: 3 inches (≈75 mm)

General Information

• Type : [Bimetal Thermometer]
• Dial Size : 3 inches (≈75 mm)
• Mounting Type : Back Connection with Adjustable Thread = Easy to adjust dial direction

Initial Specifications

• Dial Size: 3 inches (75 mm)
• Temperature Scale: °C or °F

Process Connection

• Back Connection Mounting
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Stem Material: SUS304 / SUS316
• Standard Stem Lengths: 100, 150, 200 mm (Customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range: -20…60°C, 0…120°C, 0…200°C, 0…304°C, 0…400°C (Select based on application)

Material

• Case: Stainless Steel 304 or 316
• Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (Dustproof and Splash Water Resistant)
• Accuracy: ±1.5% of Full Scale

Application
ASSF-301 3"x6" [Bimetal Thermometer] / Back Connection 0~250 C/F Dia.6.35mm 1/2G SUS304

Used for installation in tanks, pipes, heating systems, boilers, HVAC, food industry and various manufacturing processes. Key feature: Adjustable Thread suitable for applications requiring easy adjustment of dial direction to read values conveniently at the mounting position.
