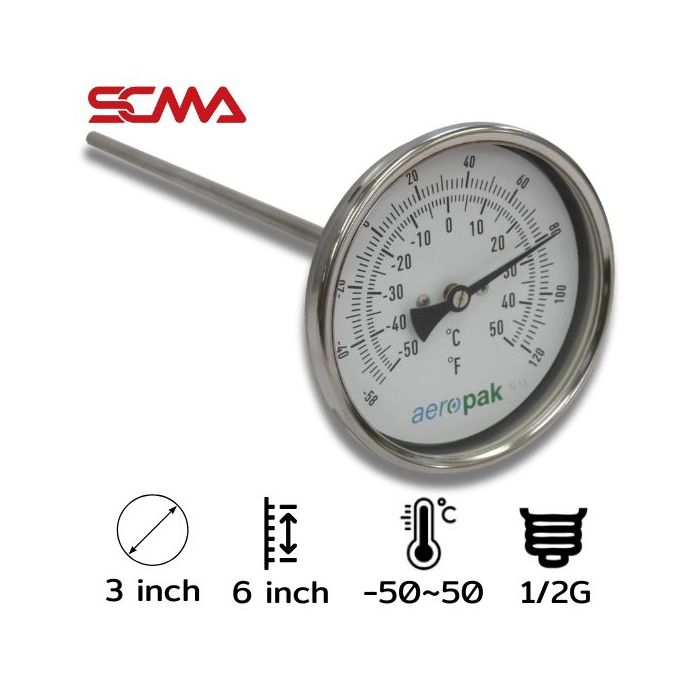

ASSF-301 3"x6" Temperature Sensor / Threaded Rear -50~50 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-301 3"x6" Bimetal Thermometer/Back Connection Thread -50~50 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Back Connection / Adjustable Thread / Dial Size 3 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size (dial face) : 3 inches (≈ 75 mm)
• Mounting Type (Installation) : Back Connection / Adjustable Thread = Easy to adjust dial direction

Preliminary Specifications (initial spec information)

• Dial Size 3 inches (75 mm)
• Display °C or °F

Process Connection (thread)

• Back Connection Mounting
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Stem Length: 100, 150, 200 mm (Customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C (Select according to application)

Material (Material)

• Case: Stainless Steel 304 or 316
• Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (Dustproof and Splash Water Resistant)
• Accuracy: ±1.5% of Full Scale

Application (Usage) ASSF-301 3"x6" Bimetal Thermometer/Back Connection Thread -50~50 C/F Dia.6.35mm 1/2G SUS304

Used in tanks, pipes, heating systems, boilers, HVAC, food industry and various manufacturing processes. Key feature: Adjustable thread suitable for applications requiring easy dial direction adjustment.
