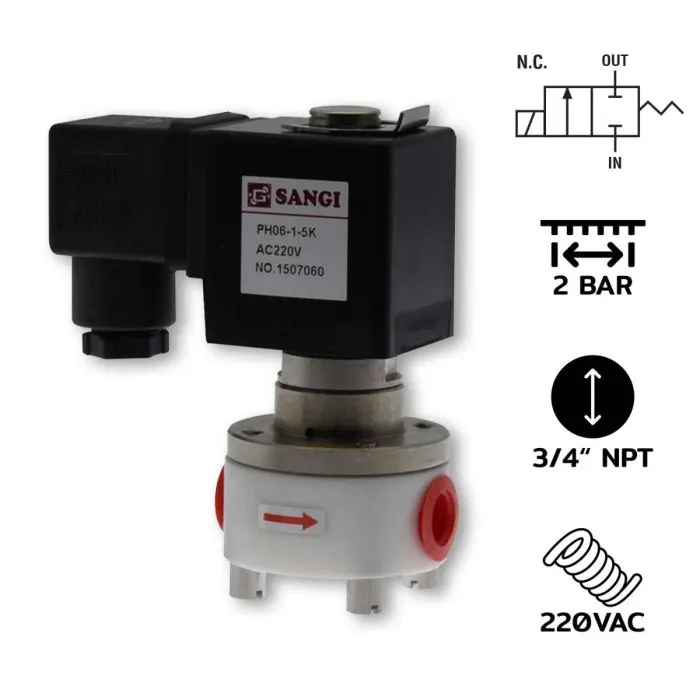

PH20(3/4")-1-6-AC220V / 2/2 way NC Diaphragm, Stick PTFE on the Rubber Di

Details of PH20(3/4")-1-6-AC220V / Diaphragm 2/2 way NC, Stick PTFE on the Rubber Di

The Diaphragm Solenoid Valve (Solenoid Valve Diaphragm Type) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as water supply systems, irrigation systems, compressed air systems, and various industries.

Working Principle of Diaphragm Solenoid Valve

Main Components

• Solenoid Coil (Electromagnetic Wire Winding): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Moves up and down with the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens and closes fluid pathways.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operating Mode

Normal Closed (NC) – Normally Closed

• No electricity → Plunger closes pilot port → Pressure on both sides of the diaphragm is equal → Diaphragm keeps valve closed.
• Electricity applied → Plunger is pulled up → Pilot port opens → Top pressure on the diaphragm decreases → Fluid from below pushes the diaphragm up → Valve opens.

Normal Open (NO) – Normally Open

• The principle is similar, but reversed in terms of pressure → Without electricity, valve is open; with electricity applied, valve closes.

Advantages of Diaphragm Valve

• Rapid opening and closing.
• No leakage (because the diaphragm does not wear out like other types of valves).
• Easy maintenance.
• Suitable for clean liquids such as water, air.

Usage Details

• Potable water system – Controls water in filters and cold water makers.
• Irrigation systems – Opens and closes water according to schedule.
• Food/Pharmaceutical industry – Used with clean liquids that require precise control.
• Pneumatic systems (compressed air) – Controls the supply of air in machinery.
• Home appliances such as washing machines, coffee makers.

Tech Specifications PH20(3/4")-1-6-AC220V / Diaphragm 2/2 way NC, Stick PTFE on the Rubber Di
