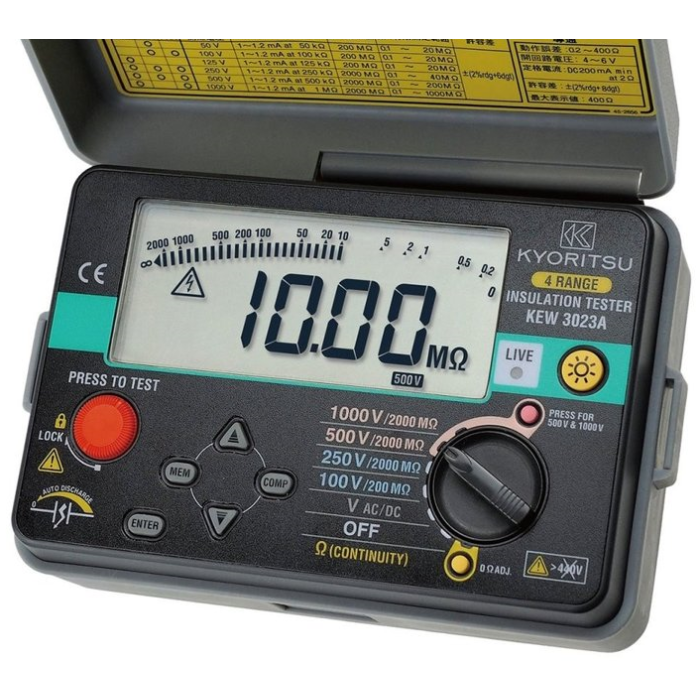

KEW 3023A KYORITSU Digital Insulation Testers
Special Price THB 14,800.00 Regular Price THB 18,500.00
Out of stock
SKU
033402
Out of stock
Delivery date: 4 ก.ย. 2569
Electrical insulation tester, Insulation meter, Digital insulation meter, Needle-type insulation meter, Digital insulation test, Pointer-type insulation test, Megohm, Megohmmeter, Wire crimping tool, Insulation, Insulation Tests, Digital Insulation, Electrical insulation meter, KYORITSU electrical insulation meter, High voltage insulation tester, Megaohm meter
*Price does not include VAT
Features of KYORITSU Insulation Tester Model KEW 3023A
KYORITSU Digital Insulation Testers (1kV Below) Model KEW 3023A
- 3 IN 1 Function : Measures insulation resistance with 4 voltage ranges, continuity, and test current of 200mA during continuity measurement.
- PASS / FAIL comparison display indicator and sound signal
- Zero Ω setting for insulation resistance measurement
- Memory capacity to store up to 99 values
- LCD screen with backlight for reading in dark environments
- Safety Lock system prevents accidental errors during measurement (500V / 10000V)
Technical Data of KYORITSU Insulation Tester Model KEW 3023A
- Test voltage : 100V 250V 500V 1000V
- Measuring range (Auto range) : 4.000 / 40.00 / 200.0MΩ / 4.000 / 40.00 / 400.0 / 2000MΩ
- Mid-scale value : 5MΩ 50MΩ
- Accuracy : ±2%rdg ±6dgt
- Ω / Continuity 40.00 / 400.0Ω ±2%rdg ±8dgt
- Voltage range : AC : 20~600V (50/60Hz) / DC : ±20~±600V Accuracy ±3%rdg ±6dgt
- Applicable standards : IEC 61010-1 CAT III 600V, IEC 61557-1, 2, 4, IEC 61326-1 (EMC), IEC 60529 (IP40)
- Included Accessories : 7150A (Remote control switch set), 9121 (Shoulder strap), R6 (AA) x 6, Instruction Manual
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 14,800.00 |
