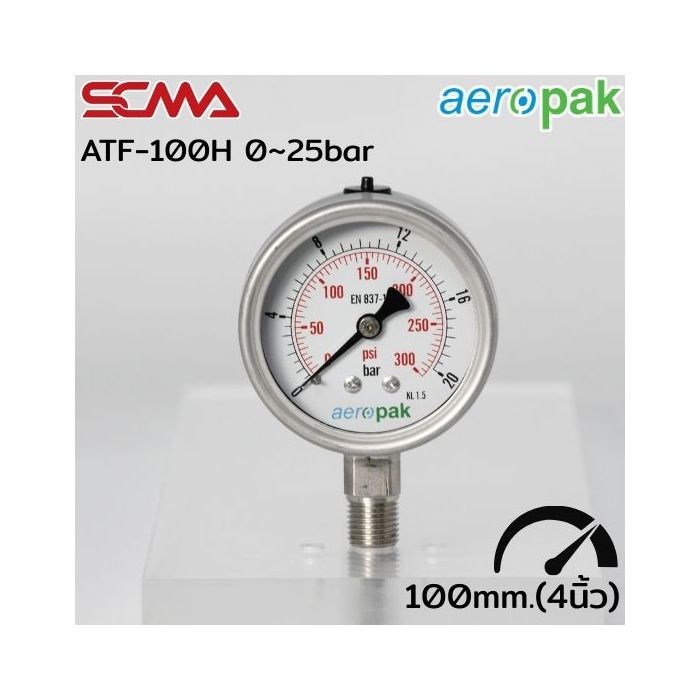

ATF-100H Pressure Gauge 0~25bar G3/8" SUS304 Bottom

Main Components of ATF-100H Pressure Gauge/Taper Thread (Bottom) 0~25bar G3/8" SUS304

The ATF-100H Pressure Gauge/Taper Thread (Bottom) 0~25bar G3/8" SUS304 is a convenient and easy-to-use pressure gauge without oil, with the pointer shaft extending out to the side. It is suitable for various industries.

• Bourdon Tube: A curved metal tube in the shape of a C or oval that expands when pressurized
• Gear & Pointer Mechanism: Converts the expansion of the tube into the rotation of the pointer
• Housing: The back or side has an extension shaft for installation purposes
• Dry Type (No Oil): No glycerin oil inside, suitable for non-vibrating environments

Working Principle of ATF-100H Pressure Gauge/Taper Thread (Bottom) 0~25bar G3/8" SUS304

The pressure from liquids or gases (such as air, water, oil, etc.) enters the Bourdon tube and causes it to expand slightly. As the pressure increases, the end of the tube moves. The end of the Bourdon tube is connected to a gear mechanism that converts linear movement into pointer rotation. The pointer rotates to a position corresponding to the measured pressure on the dial.

Advantages of Dry Type (No Oil):

• Lightweight
• Suitable for general use in non-vibrating environments
• Used in systems with stable pressure, easy to maintain

Usage Examples:

• Air compressor system
• Potable water system
• Mild hydraulic systems without severe vibration
• General industries
