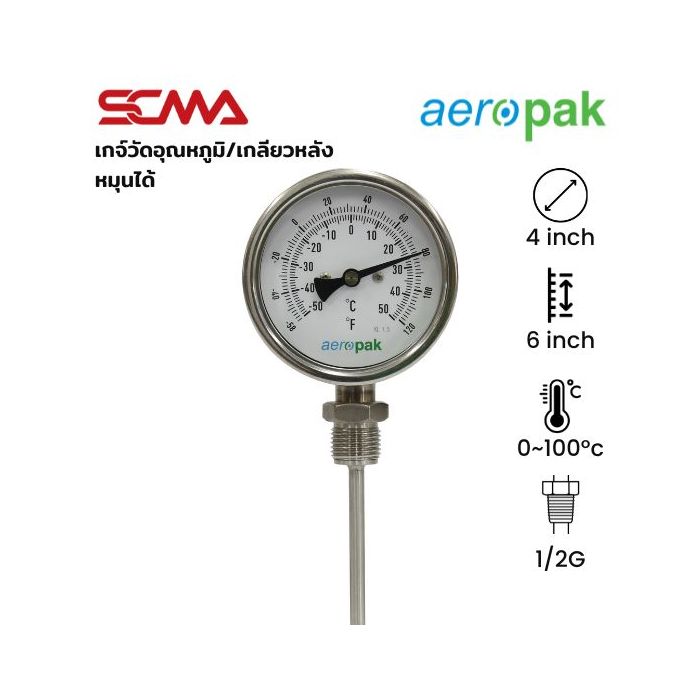

ASSF-411 Temperature Gauge/Lower Thread 4" (dial)x6" (stem length) 0~100 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-411 Bimetal Thermometer/Bottom Connection 4"(Dial)x6"(Stem Length) 0~100 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Bottom Connection (Adjustable Thread)/ Dial Size: 4 inches

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 4 inches (≈ 100 mm)
• Mounting Type : Bottom Connection (Adjustable Thread) = Can adjust the dial to desired angle

Preliminary Specifications

• Dial Size: 4 inches (100 mm)
• Display °C or °F

Process Connection

• Bottom Connection
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Lengths: 100, 150, 200, 300 mm (Custom lengths available)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range Standard: -20…60°C 0…120°C 0…200°C 0…300°C 0…400°C (Select based on application)

Material

• Case : Stainless Steel 304 or 316
• Window: Glass / Safety Glass / Polycarbonate
• Protection IP65 (Dust tight, Splash proof)
• Accuracy ±1.5% of full scale

Application ASSF-411 Bimetal Thermometer/Bottom Connection 4"(Dial)x6"(Stem Length) 0~100 C/F Dia.6.35mm 1/2G SUS304

Installed on pipes, tanks, boilers, HVAC systems, food and chemical processes. Features: Adjustable Thread allows easy adjustment of the dial to match user's viewing angle. Suitable for clear front temperature readings.
