ASSF-411 Thermometer/NPT Female 4"x3" 0~200 C/F Dia.6.35mm 1/2G SUS304

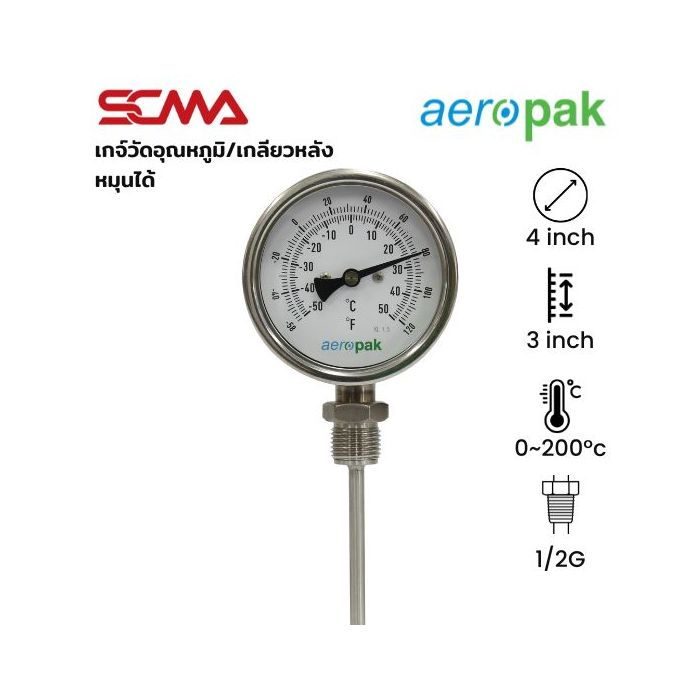

Details ASSF-411 Bimetal Thermometer/Bottom Thread 4"x3" 0~200 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Bottom Connection / Adjustable Thread / Dial Size 4 inches

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 4 inches (≈ 100 mm)
• Mounting Type : Bottom Connection Adjustable Thread = can adjust the dial to face any desired angle

Preliminary Specifications

• Dial Size : 4 inches (100 mm)
• Display °C or °F

Process Connection

• Bottom Connection
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size : 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Length: 100, 150, 200, 300 mm (customizable)
• Stem Diameter : 6 / 8 / 10 mm
• Measuring Range Standard : -20…60°C 0…120°C 0…200°C 0…300°C 0…400°C (choose according to application)

Material

• Case: Stainless Steel 304 or 316
• Window : Glass / Safety Glass / Polycarbonate
• Protection : IP65 (Dustproof and Splash Water Resistant)
• Precision : ±1.5% of Full Scale

Application ASSF-411 Bimetal Thermometer/Bottom Thread 4"x3" 0~200 C/F Dia.6.35mm 1/2G SUS304

Installed on pipes, tanks, boilers, HVAC systems, food and chemical processes. Key feature: Adjustable thread allows easy adjustment of the dial to any viewing angle for clear front-facing temperature readings.
