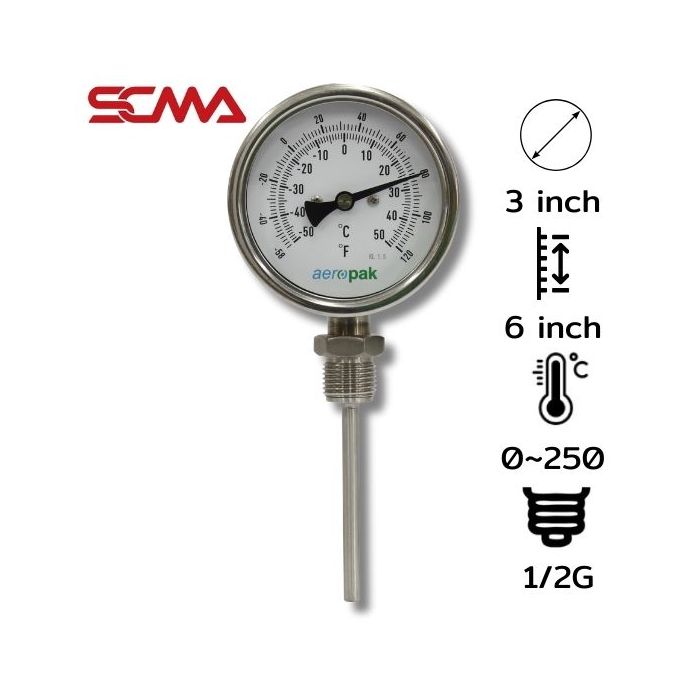

ASSF-313 3"x6" Temperature Sensor/Below Thread 0~250 C/F Dia.6.35mm 1/2G SUS304

Details

Bimetal Thermometer Gauge

Type: Lower Thread / Fixed Stem Thread / Dial Size 3 inches

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 3 inches (≈ 75 mm)
• Mounting Type : Lower Thread (Bottom Connection)
• Fixed Thread = Fixed Stem Thread (cannot be adjusted like the Adjustable type)

Initial Specifications

• Dial Size : 3 inches (75 mm)
• Thread (Process Connection) : BSPT or NPT type
• Standard size 1/2" or 3/4"
• Fixed Stem Thread, Measuring Stem Material : SUS304 or SUS316
• Standard stem length 100, 150, 200 mm (customizable as required)
• Stem diameter 6 mm / 8 mm / 10 mm
• Temperature Measuring Range : Example standard ranges such as -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C Select according to actual use

Material

• Case : Stainless Steel 304/316
• Window : Glass / Safety Glass / Polycarbonate
• Protection : IP65 (dustproof and splash water resistant)
• Accuracy : ±1.5% of full scale

Application

Used in pipe systems, tanks, boilers, food industry machinery, air conditioning systems, suitable for work that does not require frequent adjustment of the dial. Offers higher durability than adjustable thread types.
