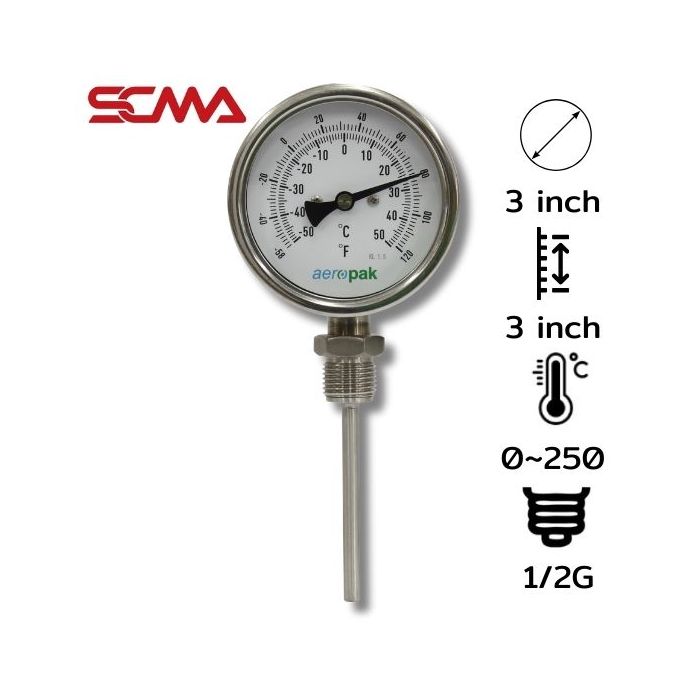

ASSF-313 3"x3" Temperature Sensor/Below Thread 0~250 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-313 3"x3" Bimetal Thermometer/Lower Thread 0~250 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer

Type: Lower Thread / Fixed Stem Thread / Dial Size 3 inches

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 3 inches (≈ 75 mm)
• Mounting Type : Lower Thread (Bottom Connection)
• Fixed Thread = Fixed Stem Thread (Cannot be adjusted like Adjustable type)

Initial Specifications

• Dial Size : 3 inches (75 mm)
• Thread (Process Connection) : BSPT or NPT type
• Standard size 1/2" or 3/4"
• Fixed Stem Thread, Measuring Stem Material : SUS304 or SUS316
• Standard stem length 100, 150, 200 mm (Customizable as required)
• Stem Diameter : 6 mm / 8 mm / 10 mm
• Measuring Range : Example standard range such as -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C Select according to actual use

Material

• Case : Stainless Steel 304/316
• Window : Glass / Safety Glass / Polycarbonate
• Protection : IP65 (Dustproof and Splash Water Resistant)
• Accuracy : ±1.5% of Full Scale

Application ASSF-313 3"x3" Bimetal Thermometer/Lower Thread 0~250 C/F Dia.6.35mm 1/2G SUS304

Used in pipe systems, tanks, boilers, food industry machinery, air conditioning systems with fixed stem thread type suitable for applications where the dial does not need frequent adjustment providing higher durability than adjustable types.
