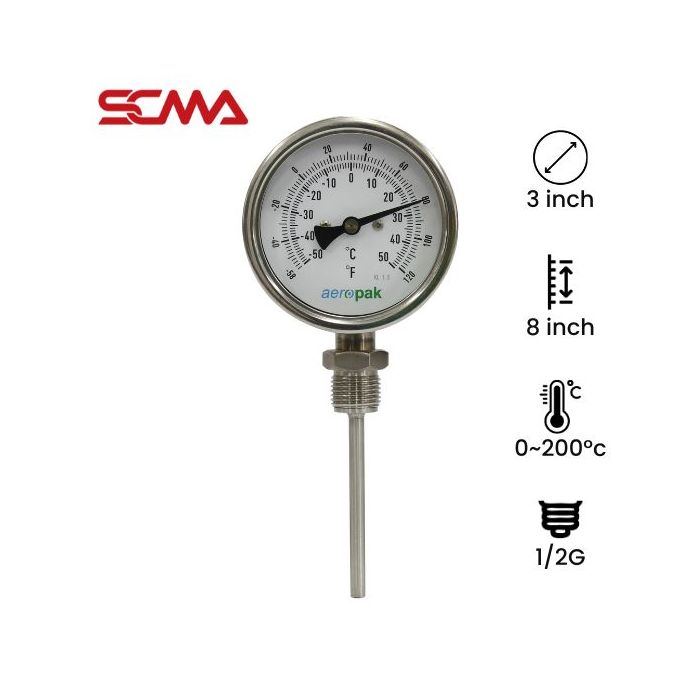

ASSF-311 Thermometer 3"x8" 0~200 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-311 Bimetal Thermometer / Bottom Threaded 3"x8" 0~200 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer with bottom threaded connection and adjustable thread, dial size 3 inches.

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Construction : Circular dial, temperature display in °C or °F
• Mounting : Bottom connection (Bottom Connection) with adjustable thread / rotatable thread for easy orientation adjustment.

Initial Specifications

• Dial Size : 3 inches (≈ 75 mm)

Process Connection :

• Type BSPT or NPT as standard.
• Common sizes are 1/2" or 3/4".
• Adjustable Thread.

Stem :

• Material SUS304 or SUS316.
• Standard stem lengths are 100, 150, 200 mm (custom sizes available).
• Stem diameter 6 mm / 8 mm / 10 mm.

Measuring Range :

• Standard ranges include -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C, select according to application.

Material :

• Case : Stainless Steel 304/316
• Window : Glass / Safety Glass / Polycarbonate

Protection : IP65 (Dustproof and Splash Water Resistant)

Accuracy : ±1.5% of Full Scale

Application

Used in pipe systems, tanks, boilers, food industry, chemical industry, air conditioning systems

Easy to install and suitable for applications requiring direct on-site temperature readings

In case of vibration, a Glycerin Filled (oil-filled) model can be selected to extend the service life
