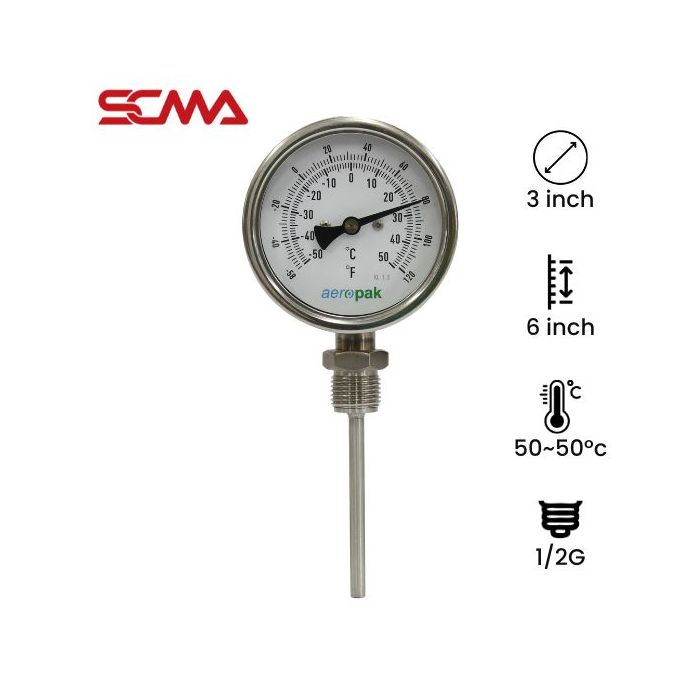

ASSF-311 Thermometer 3"x6" -50~50 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-311 Bimetal Thermometer/Lower Threaded 3"x6" -50~50 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer with Lower Threaded Connection / Adjustable Thread / Dial Size 3 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Construction : Round Dial, Temperature Display in °C or °F
• Mounting : Lower Threaded (Bottom Connection) with Adjustable Thread / Rotating Thread for easy dial orientation adjustment

Initial Specifications (initial spec information)

• Dial Size : 3 inches (≈ 75 mm)

Process Connection :

• Type BSPT or NPT as standard
• Common Size 1/2" or 3/4"
• Adjustable Thread

Stem :

• Material SUS304 or SUS316
• Standard stem length 100, 150, 200 mm (customizable)
• Stem diameter 6 mm / 8 mm / 10 mm

Measuring Range :

• Standard range such as -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C, select according to application

Material :

• Case : Stainless Steel 304/316
• Window : Glass / Safety Glass / Polycarbonate

Protection : IP65 (Dustproof and Splash Water Resistant)

Accuracy : ±1.5% of Full Scale

Application

Used in pipe systems, tanks, boilers, food industry, chemical industry, air conditioning systems

Easy to install and suitable for applications requiring direct on-site temperature readings

In case of vibration, a Glycerin Filled (oil-filled gauge) option can be selected to extend the lifespan
