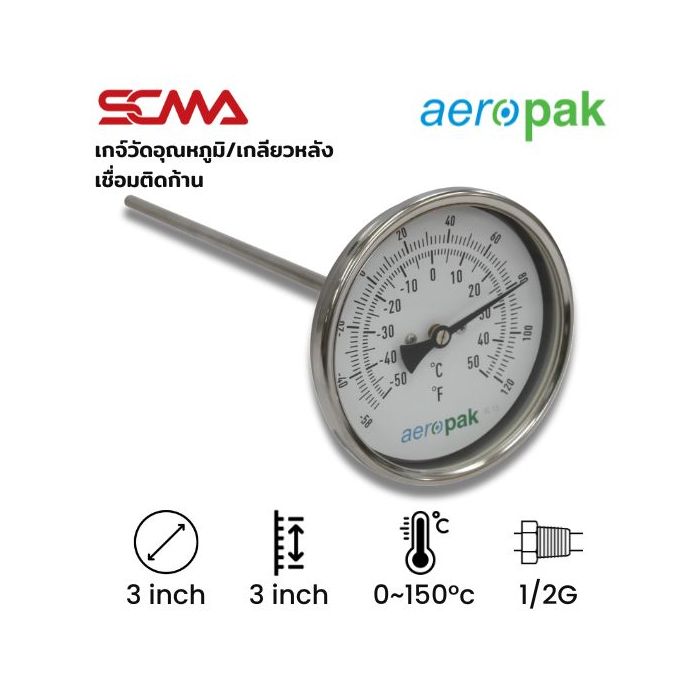

ASSF-303 Temperature Sensor / Male Thread 3"x3" 0~150 C/F Dia.6.35mm 1/2G SUS304

Details of ASSF-303 Bimetal Thermometer/Back Connection 3"x3" 0~150 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Back Connection / Fixed Thread / Dial Size 3 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size (dial face) : 3 inches (≈ 75 mm)
• Mounting Type (Installation) : Back Connection / Fixed Thread = Strong and durable, cannot adjust the dial

Preliminary Specifications (initial spec information)

• Dial Size 3 inches (75 mm)
• Scale °C or °F

Process Connection (thread)

• Back Connection installation
• Fixed Thread connection
• Standard BSPT or NPT
• Pipe size 1/2" or 3/4"
• Stem material SUS304 / SUS316
• Standard stem length: 100, 150, 200 mm (customizable)
• Stem diameter: 6 / 8 / 10 mm
• Temperature Measuring Range (Temperature measurement range) Standard range: -20…60°C 0…120°C 0…200°C 0…300°C 0…400°C, choose according to application

Material (Material)

• Case: Stainless Steel 304 or 316
• Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (dustproof and splash-proof)
• Precision: ±1.5% of full scale range

Application (Usage) ASSF-303 Bimetal Thermometer/Back Connection 3"x3" 0~150 C/F Dia.6.35mm 1/2G SUS304

Used in pipe systems, tanks, boilers, machinery, food industry, HVAC. Features: Fixed Thread type suitable for applications where dial adjustment is not required, stronger and more durable than adjustable thread types.
