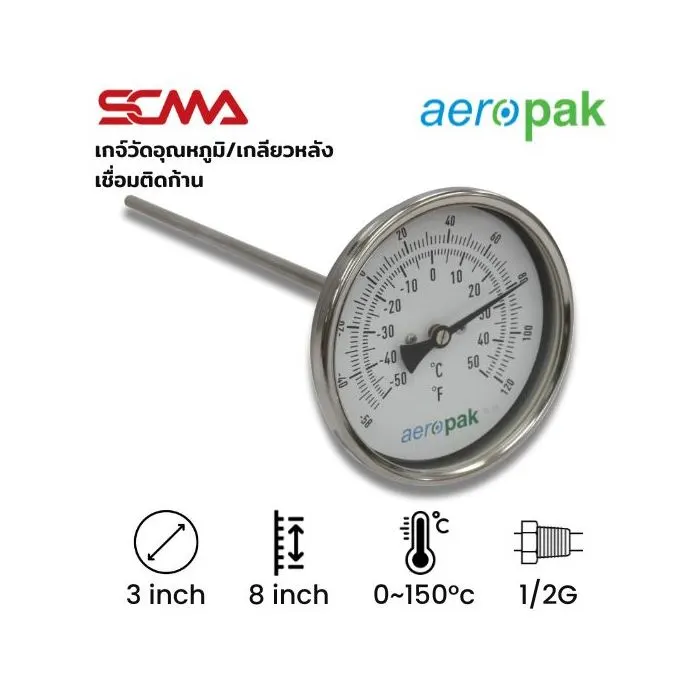

ASSF-303 Temperature Sensor / Male Thread 3"x8" 0~150 C/F Dia.6.35mm 1/2G SUS304

Details of ASSF-303 Bimetal Thermometer/Back Connection 3"x8" 0~150 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type, Back Connection / Fixed Thread / Dial Size 3 inches

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 3 inches (≈ 75 mm)
• Mounting Type : Back Connection / Fixed Thread = Strong and durable, cannot adjust the dial

Preliminary Specifications

• Dial Size: 3 inches (75 mm)
• Scales in °C or °F

Process Connection

• Back Connection installation
• Fixed Thread
• Standard BSPT or NPT
• Pipe size: 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Stem Length: 100, 150, 200 mm (customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range Standard: -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C (choose according to application)

Material

• Case: Stainless Steel 304 or 316
• Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (Dustproof and splash-proof)
• Accuracy: ±1.5% of full scale

Application ASSF-303 Bimetal Thermometer/Back Connection 3"x8" 0~150 C/F Dia.6.35mm 1/2G SUS304

Used in pipe systems, tanks, boilers, machinery, food industry, HVAC. Features: Fixed Thread type suitable for applications where dial adjustment is not required; stronger and more durable than adjustable thread types.
