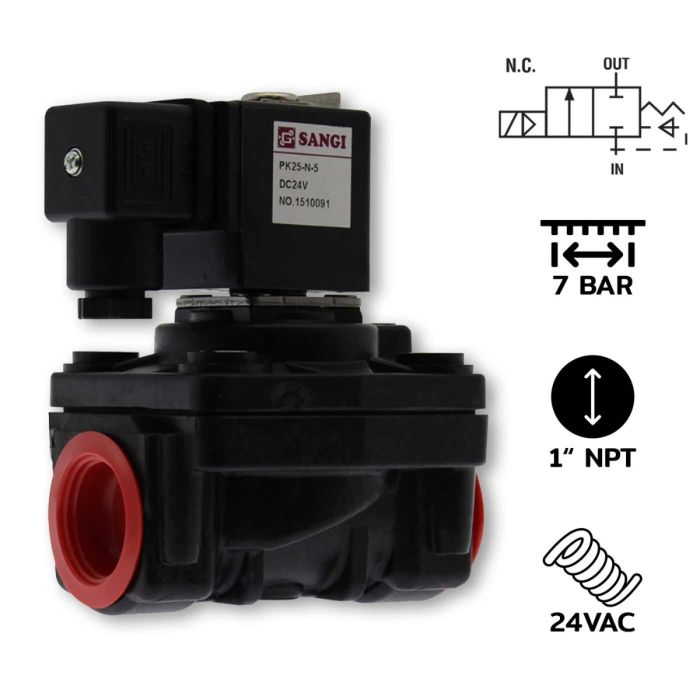

Solenoid Valve Model: PK25(1")-N-4-AC24V / Type K 2/2 way NC, PA Nylon plastic body, for Water

Product Details of Solenoid Valve Model: PK25(1")-N-4-AC24V / Diaphragm 2/2 way NC, PA Nylon plastic body, for Water

The Diaphragm type Solenoid Valve (Solenoid Valve Diaphragm Type) is a valve that controls the flow of liquids or gases using a diaphragm and solenoid to open and close the valve. It is commonly used in automatic systems such as water supply systems, irrigation systems, pneumatic systems, and various industries.

Working Principle of Solenoid Valve with Diaphragm

Main Components

• Solenoid Coil (Electromagnetic Wire Winding): Creates a magnetic field when electric current flows through it.
• Plunger (Movable Iron Rod): Lifted or lowered by the magnetic field.
• Diaphragm (Flexible Rubber/Silicone Sheet): Opens and closes fluid pathways.
• Pilot Port (Pressure Control Port): A small port that helps control pressure on both sides of the diaphragm.

Operation Mode

Normal Closed (NC) – Normally Closed

• No electricity → Plunger closes pilot port → Pressure on both sides of the diaphragm is equal → Diaphragm keeps valve closed.
• Electricity applied → Plunger lifts up → Opens pilot port → Top side pressure decreases → Fluid from bottom pushes diaphragm up → Valve opens.

Normal Open (NO) – Normally Open

• Similar principle but reversed pressure sides → No electricity, valve is open; with electricity, valve closes.

Advantages of Diaphragm Valves

• Rapid opening and closing.
• No leakage (as the diaphragm does not wear like other valves).
• Easy maintenance.
• Suitable for clean fluids such as water, air.

Usage Details

• Potable water systems: Control water in filters and cold water dispensers.
• Irrigation systems: Open and close water according to schedule.
• Food/Pharmaceutical industries: Used with clean fluids that require precise control.
• Pneumatic systems (Air Systems): Control air supply in machinery.
• Home appliances such as washing machines, coffee makers.

Tech Specifications Solenoid Valve Model : PK25(1")-N-4-AC24V / Diaphragm 2/2 way NC, PA Nylon plastic body, for Water
