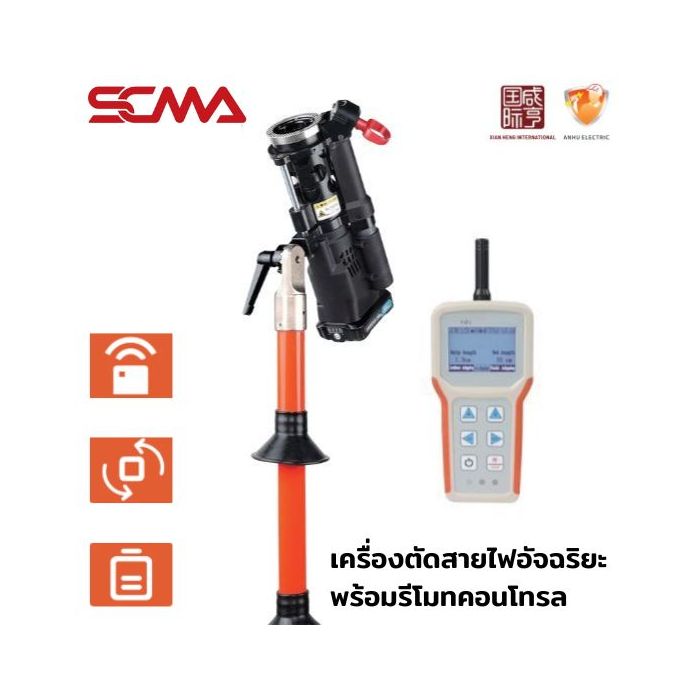

KAHSE-PIWC-2 Kepler Intelligent Quick-Mount Clamp Installation Tool

Features KAHSE-PIWC-2 KEPLER Intelligent Quick-Mount Clamp Installation Tool

Screw-adjustable hanging strap: Versatile use, wide compatibility and easy operation
Adjustable multi-directional locking clamp: Supports multiple angle adjustments to fit various cable configurations
Preset torque screwdriver function: Comes with a preset torque feature for accurate installation
Mechanical emergency release: For handling severe tool malfunctions and facilitating easier recovery

Applications KAHSE-PIWC-2 KEPLER Intelligent Quick-Mount Clamp Installation Tool

Can be used in various live-line maintenance practices, including work at ground potential on mountainous terrain, working on short poles using bucket trucks, and working with gloves. This enables efficient and high-quality installation of pre-assembled cable clamps that can be quickly mounted (such as S-type clamps, narrow-mouthed clamps, etc.) during live-line connections.

Technical Data KAHSE-PIWC-2 KEPLER Intelligent Quick-Mount Clamp Installation Tool

• Voltage level for live-line work support: 10 kV and below
• Live Work Methods: Ground potential, intermediate potential
• Hanging Ring Outer Diameter Range: 25-40mm
• Hanging Ring Cable Diameter Range: 5.5-8mm (without insulation block) 3.5-6mm (with insulation block)
• Extension Stroke Range: 10-55mm
• Extension Speed: 8mm/s
• Impact Time Setting Range of Impact Wrench: 0.5-5.0s (adjustable in 0.1-second increments)
• Number of Conductors Installed per Full Battery: Approximately 30 conductors
• Standard Accessories: Remote control, Insulating stick (3 sections, total length 4 meters), Dual-purpose hook stick (2 sections, total length 3m), Two batteries, Two chargers
