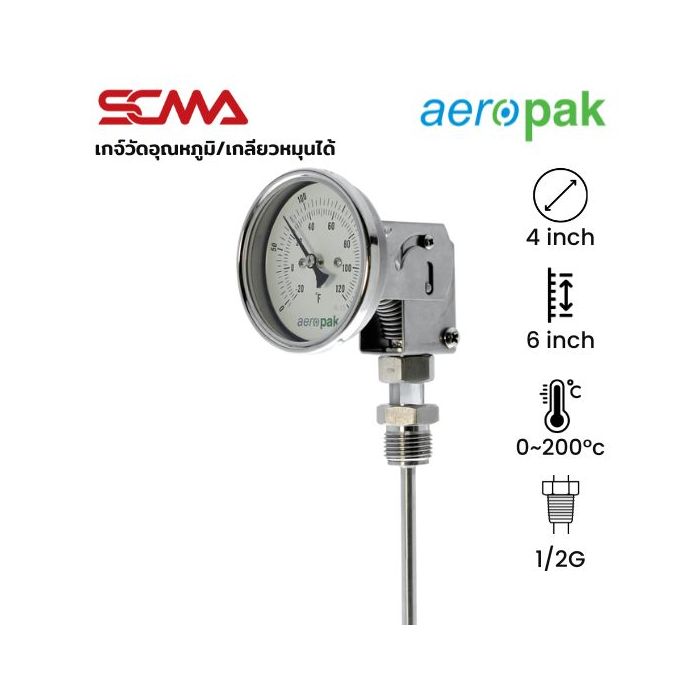

ASSF-481 Thermometer/Bayonet/Lower 4"x6" 0~200 C/F Dia.6.35mm 1/2G SUS304

Details ASSF-481 Bimetal Thermometer / Back/Bottom Thread 4"x6" 0~200 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Adjustable Angle / Rotating Thread / Dial Size 4 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 4 inches (≈ 100 mm)
• Mounting Type : Bottom Connection (Lower thread) or Back Connection (rear thread)
• Adjustable Thread (Angle adjustable type) allows rotating the dial to adjust viewing angle for easy reading

Preliminary Specifications (initial spec information)

• Dial Size : 4 inches (100 mm), white face with black numbers, easy to read
• Scale Display : °C or °F

Process Connection (thread)

• Adjustable Thread (rotating thread)
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Material : SUS304 / SUS316
• Standard Stem Length : 100, 150, 200 mm (customizable)
• Stem Diameter : 6 / 8 / 10 mm
• Measuring Range (Temperature measurement range) Example Standard Ranges: -20…60°C / 0…120°C / 0…200°C / 0…300°C / 0…400°C, choose according to application

Material (Material)

• Case : Stainless Steel 304 or 316
• Window : Glass / Safety Glass / Polycarbonate
• Protection : IP65 (防尘防水)
• Accuracy : ±1.5% of Full Scale (accuracy)

Application (Usage) ASSF-481 Bimetal Thermometer/Back/Bottom Thread 4"x6"0~200 C/F Dia.6.35mm 1/2G SUS304

Suitable for pipes, tanks, boilers, HVAC systems, food and chemical industries. Key Features: Adjustable Angle / Adjustable Thread helps adjust the dial to read values conveniently according to installation position.
