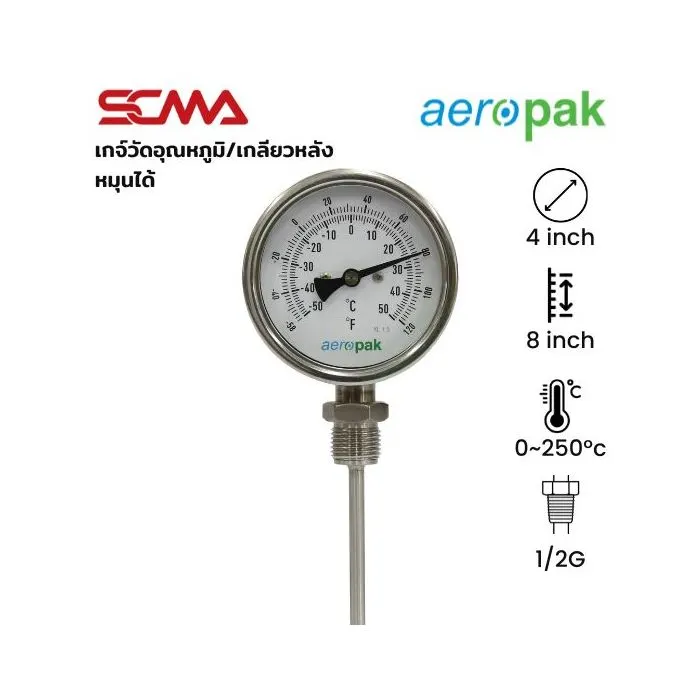

ASSF-411 Temperature Sensor 4"x8" 0~250 C/F Dia.6.35mm 1/2G SUS304

Details of ASSF-411 Bimetal Thermometer with Bottom Connection 4"x8", Range: 0~250 C/F, Dial Diameter: 6.35mm, Thread Size: 1/2G, Material: SUS304

Bimetal Thermometer type with Bottom Connection and Adjustable Thread / Dial size: 4 inches (≈ 100 mm)

General Information

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 4 inches (≈ 100 mm)
• Mounting Type : Bottom Connection with Adjustable Thread = Can adjust the dial to desired angle

Preliminary Specifications

• Dial Size: 4 inches (100 mm)
• Temperature Scale: °C or °F

Process Connection

• Bottom Connection
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Stem Material: SUS304 / SUS316
• Standard Stem Lengths: 100, 150, 200, 300 mm (Custom lengths available)
• Stem Diameter: 6 / 8 / 10 mm
• Temperature Measuring Range: -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C (Select according to application)

Material

• Casing: Stainless Steel 304 or 316
• Glass Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (Dustproof and Splash-proof)
• Accuracy: ±1.5% of Full Scale

Application ASSF-411 Bimetal Thermometer with Bottom Connection 4"x8", Range: 0~250 C/F, Dial Diameter: 6.35mm, Thread Size: 1/2G, Material: SUS304

Installed on pipes, tanks, boilers, HVAC systems, food and chemical processes. Features: Adjustable thread allows easy adjustment of the dial to desired angle for clear front-facing temperature readings.
