ASSF-403 Temperature Sensor/Tapered Thread 4"x6" -0~300 C/F Dia.6.35mm 1/2"PT SUS304

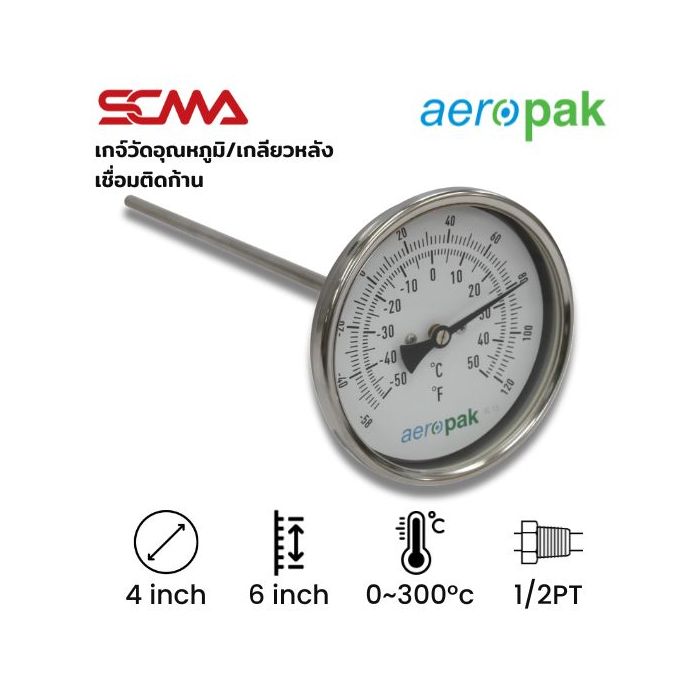

Details of ASSF-403 Bimetal Thermometer - 4"x6" Back Connection, -0~300 C/F, Dia.6.35mm, 1/2"PT SUS304

Bimetal Thermometer with Back Connection and Fixed Thread / Dial Size: 4 inches (≈ 100 mm)

General Information

• Type: Bimetal Thermometer
• Dial Size: 4 inches (≈ 100 mm)
• Mounting Type: Back Connection with Fixed Thread, sturdy and durable, cannot adjust the dial

Preliminary Specifications

• Dial Size: 4 inches (100 mm), white faceplate, black numbers for clear reading
• Temperature Scale: °C or °F

Process Connection

• Screw Position: Back Connection
• Fixed Thread
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Stem Material: SUS304 / SUS316
• Standard Lengths: 100, 150, 200, 300 mm (customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Temperature Measuring Range:
• Standard Range: -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C (choose according to application)

Material

• Housing: Stainless Steel 304 or 316
• Glass Window: Glass / Safety Glass / Polycarbonate
• Protection: IP65 (dustproof and splash-proof)
• Accuracy: ±1.5% of full scale

Application ASSF-403 Bimetal Thermometer - 4"x6" Back Connection, -0~300 C/F, Dia.6.35mm, 1/2"PT SUS304

Used for boilers, tanks, pipes, heating systems, HVAC, food and chemical industries. Features: Fixed Thread type is strong and durable, suitable for applications where dial adjustment is not necessary.
