ASSF-401 Temperature Sensor / Male Thread 4"x3" -10~100 C/F Dia.6.35mm 1/2G SUS304

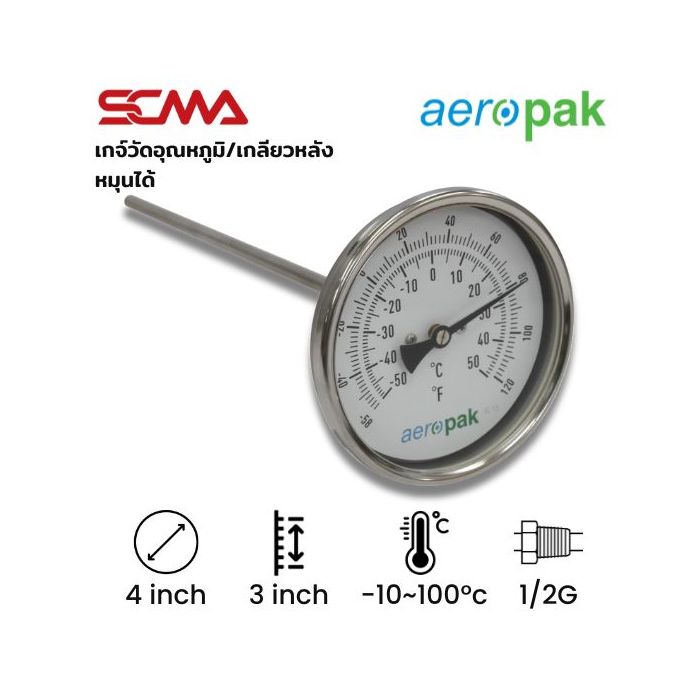

Details ASSF-401 Bimetal Thermometer/Back Connection 4"x3" -10~100 C/F Dia.6.35mm 1/2G SUS304

Bimetal Thermometer type Back Connection / Adjustable Thread / Dial Size 4 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Dial Size : 4 inches (≈ 100 mm)
• Mounting Type : Back Connection Adjustable Thread, can rotate the dial to match user's viewing angle

Preliminary Specifications

• Dial Size: 4 inches (100 mm), white face with black numbers for clear reading
• Display °C or °F

Process Connection

• Screw Position : Back (Back Connection)
• Adjustable Thread
• Standard BSPT / NPT
• Pipe Size: 1/2" or 3/4"
• Stem Material SUS304 / SUS316
• Standard Length : 100, 150, 200, 300 mm (Customizable)
• Stem Diameter: 6 / 8 / 10 mm
• Measuring Range
• Standard Range: -20…60°C 0…120°C 0…200°C 0…300°C 0…400°C, choose according to application

Material

• Case : Stainless Steel 304 or 316
• Window : Glass / Safety Glass / Polycarbonate
• Protection : IP65 (Dustproof and Splash Water Resistant)
• Accuracy : ±1.5% of Full Scale

Application ASSF-401 Bimetal Thermometer/Back Connection 4"x3" -10~100 C/F Dia.6.35mm 1/2G SUS304

Suitable for installation in tanks, pipes, boilers, HVAC systems, food and chemical industries
Highlights: Adjustable Thread allows rotating the dial to face user for easy reading
