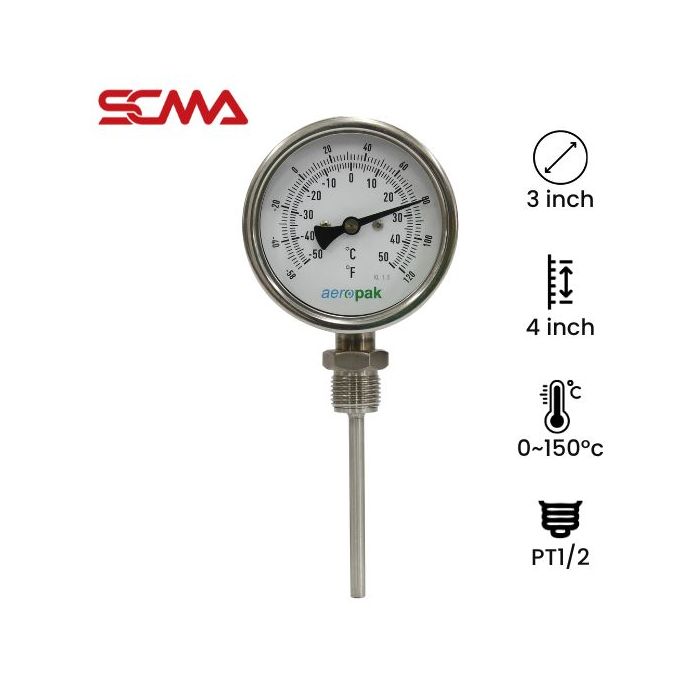

ASSF-311 Thermometer 3"x4" 0~150 C/F Dia.6.35mm PT1/2 SUS304

Details ASSF-311 Bimetal Thermometer/Lower Threaded 3"x4" 0~150 C/F Dia.6.35mm PT1/2  SUS304

Bimetal Thermometer with lower threaded connection / adjustable thread / dial size 3 inches

General Information (General information)

• Type : Bimetal Thermometer (bimetal thermometer)
• Construction : Round dial, temperature display in Celsius (°C) or Fahrenheit (°F)
• Installation : Lower threaded connection (Bottom Connection), adjustable thread for easy dial orientation adjustment

Initial Specifications

• Dial Size : 3 inches (≈ 75 mm)

Process Connection :

• Type BSPT or NPT as standard
• Common size 1/2"" or 3/4""
• Adjustable Thread (rotating thread)

Stem :

• Material SUS304 or SUS316
• Standard stem length 100, 150, 200 mm (customizable)
• Stem diameter 6 mm / 8 mm / 10 mm

Measuring Range :

• Standard range such as -20…60°C, 0…120°C, 0…200°C, 0…300°C, 0…400°C (select according to application)

Material :

• Case : Stainless Steel 304/316
• Window : Glass / Safety Glass / Polycarbonate

Protection : IP65 (Dustproof and Splash Water Resistant)

Accuracy : ±1.5% of Full Scale

Application

Used in pipe systems, tanks, boilers, food industry, chemical industry, air conditioning systems

Easy to install and suitable for applications requiring direct on-site temperature readings

In case of vibration, a Glycerin Filled (oil-filled) model can be selected to extend the lifespan
