SG-QTDS-H-S2,M2-5 /DN15(1/2")-DN700(28") / Clamp on type / Handheld Ultrasonic Flow Meter SANGI

Details SG-QTDS-H-S2,M2-5 /DN15(1/2")-DN700(28") / Clamp on type / Handheld Ultrasonic Flow Meter SANGI

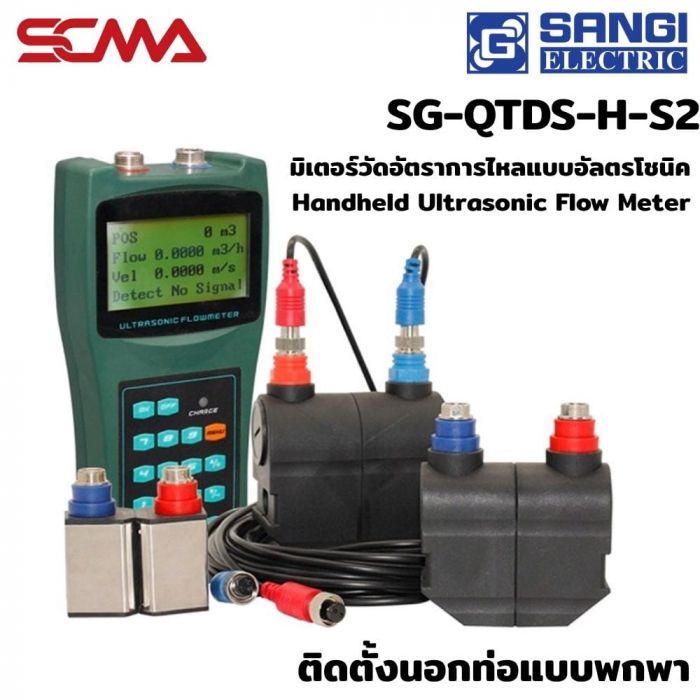

SG-QTDS-H-S2,M2-5 /DN15(1/2")-DN700(28") / Clamp on type / Handheld Ultrasonic Flow Meter SANGI is a portable ultrasonic flow meter designed for measuring fluid flow rates within pipe systems using clamp-on sensors, which are installed externally to the pipes. Therefore, there is no need to cut, drill, or modify existing pipelines.

It is suitable for system inspections, maintenance work, commissioning tasks, and temporary flow rate measurements. The device can be easily moved to different measurement points, making it ideal for industrial plants, buildings, public utility systems, and water systems that require flow monitoring while minimizing impact on production processes.

• Operates from pipe sizes DN15-DN700 (1/2" - 28")
• Type of transducer : Model S2(DN15 - DN100) and M2(DN50 - DN700)
• Transducer installation : Installed using a clamp chain to the pipe (mounting accessories included in the box)
• Length of transducer cable : 5 meters
• Flow velocity range : 0…±10m/s
• Meter accuracy : ±1%
• LCD Display screen for transmitter device display and reading values
• RS232 port connection for uploading stored data with free software
• Transmitter display protection standard : IP67
• Battery power source : Rechargeable Ni-MH battery with charging set, providing continuous operation of 12 hours.

Temperature and Materials Measured by SG-QTDS-H-S2,M2-5 /DN15(1/2")-DN700(28") / Clamp on type / Handheld Ultrasonic Flow Meter SANGI

• Measurable medium temperature : -30…90 degrees Celsius (for high-temperature special models, contact sales)
• Pipe materials measurable : Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum
