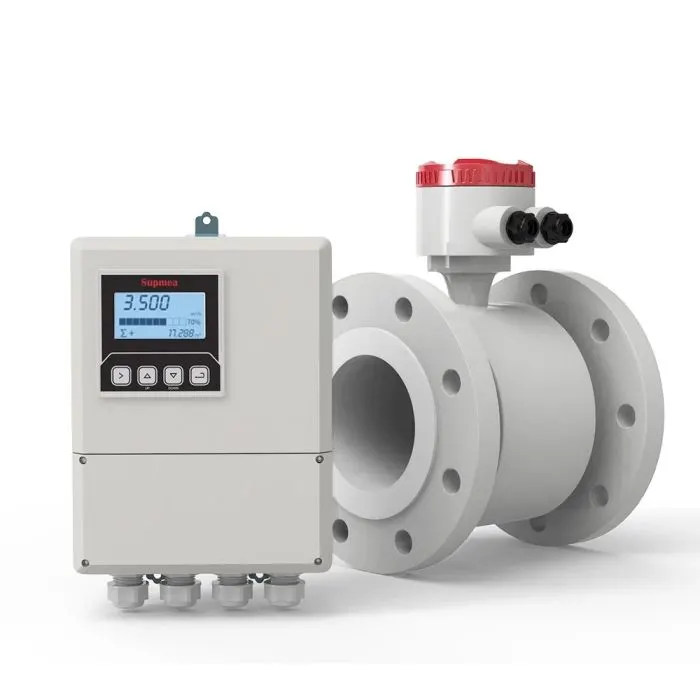

SUPMEA SUP-LDG Remote Type Electromagnetic Flow Meter (เครื่องวัดอัตราการไหลแบบสนามแม่เหล็ก)

Product

Electromagnetic flowmeter

Model

SUP-LDG

Diameter nominal

DN15~DN1200

Nominal pressure

DN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized

Accuracy

±0.5% F.S. (Flow speed > 1m/s);  ±0.5% F. S. ±2mm/s (Flow speed <1m/s)

Liner material

  Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA

Electrode material

  316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt

Medium temperature

Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃

Power supply

85-245VAC，50/60Hz, 22VDC-26VDC

Electrical conductivity

Water min.20μS/cm;other medium min.5μS/cm

Structure type

Compact type, Remote type

Ingress protection

IP65 for converter, IP68 for sensor

Product standard

JB/T 9248-1999 Electromagnetic Flow Meter
