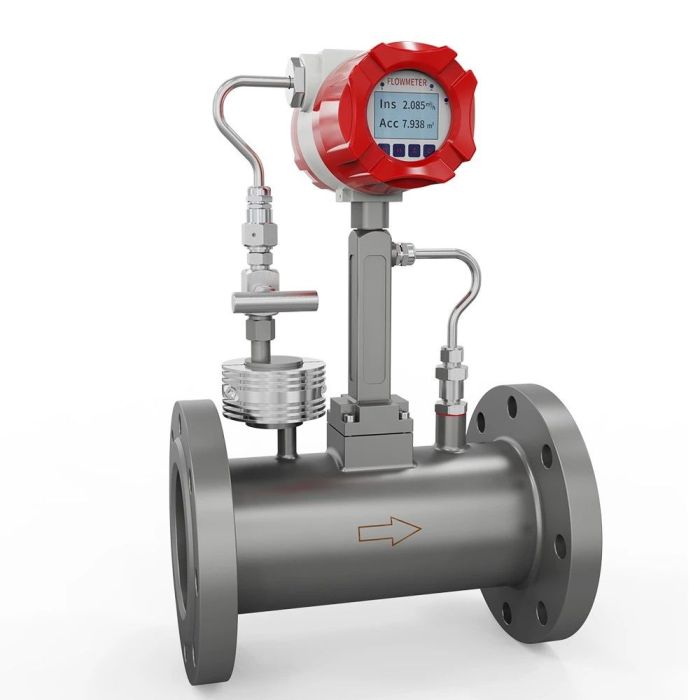

SUPMEA SUP-LUGB Vortex Flow Meter (เครื่องวัดอัตราการไหลแบบไหลวน) with temperature & pressure compensation

Product

Vortex flowmeter

Model

SUP-LUGB

Diameter nominal

DN15~DN300

Installation

Wafer connection: DN15-DN300(priority PN2.5MPa);   Flange connection: DN15-DN50(priority PN2.5MPa);DN65-DN200(priority PN1.6MPa);DN250-DN300(priority PN1.0MPa）

Accuracy

Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5%

Range Ratio

Gas density:1.2kg/m3, Range ratio: 8:1

Medium Temperature

-20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C

Output signal

4-20mA

Frequency

RS485 communication (Modbus RTU)

Power supply

24VDC±5%  Li battery(3.6VDC)

Ingress protection

IP65

Body Materials

Stainless shell

Display

128*64 dot matrix LCD
