CO传感器 transmitter 模型 : SGM33-1115-2M

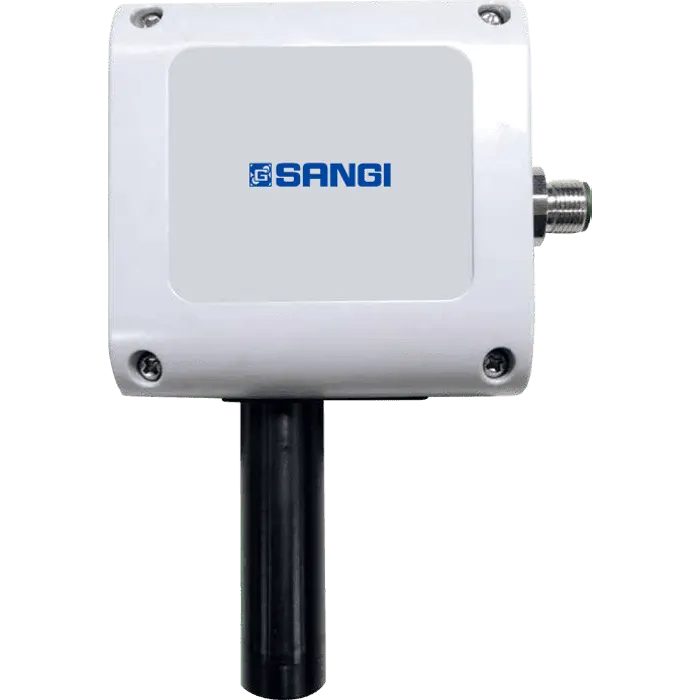

CO Sensor Transmitter ([Carbon Monoxide] Sensor) Model: SGM33-1115-2M

CO Sensor Transmitter ([Carbon Monoxide] Sensor) Model: SGM33-1115-2M is a gas concentration sensor for wall installation. The housing is made of heat-resistant polycarbonate, with dust and water protection standards. The housing has an IP65 standard, while the probe has an IP20 standard. The type of sensor is Electrochemistry CO Sensor, with accuracy (at 25 ± 2°C, 40 ± 10%RH): ± 3 % F.S., for efficient measurement.

Technical Data CO Sensor Transmitter ([Carbon Monoxide] Sensor) Model: SGM33-1115-2M

• Measurement Range: 0 ~ 500 PPM
• Sensor Type: Electrochemistry CO Sensor
• Accuracy (at 25 ± 2°C, 40 ± 10%RH): ± 3 % F.S.
• Housing made of heat-resistant polycarbonate
• Analog Output: 4-20 mA
• Communication: RS485(Modbus RTU)
• Operating Temperature and Humidity: 0 °C ~ +50 °C/ 5 ~ 95 %RH
• Maximum Measurable Temperature Range: 0°C ~ +50°C
• Operating Voltage Level: 8-35VDC or 12-30VAC
• Protection Standards: Housing IP65 / Probe IP20
• Connector Type: Connector M12
